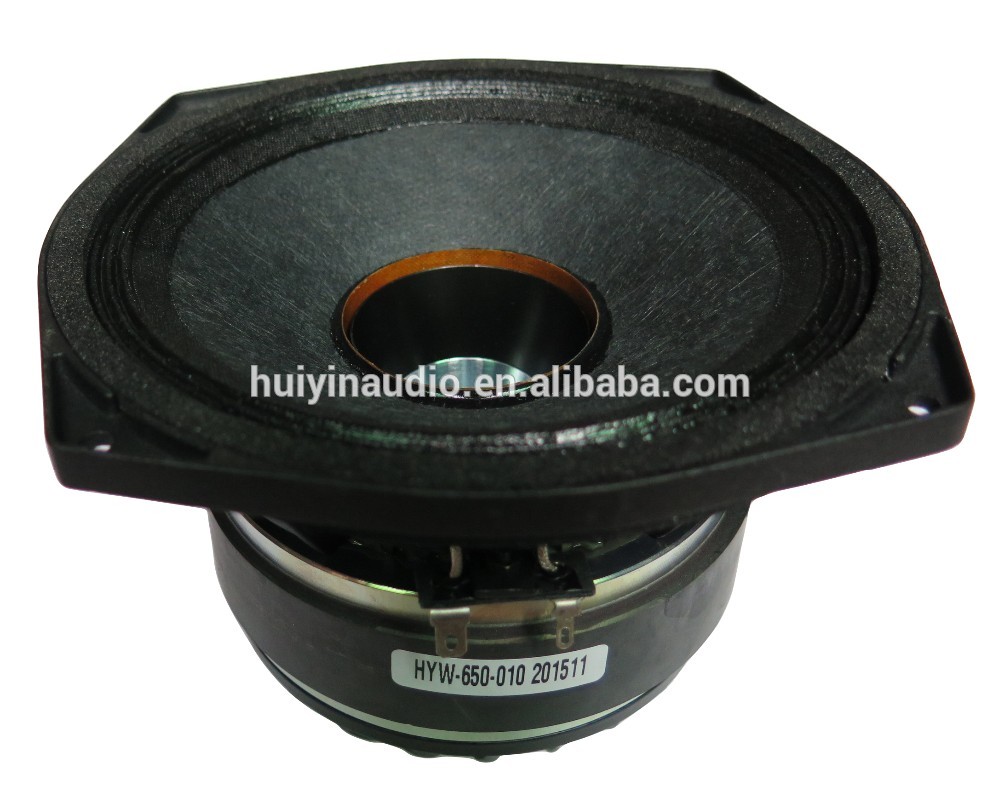

6.5 inch Professional speaker loudspeaker coaxial speaker 6.5"

Guangzhou Huiyin Audio Co., Ltd.
Contact Now

6.5 inch Professional speaker loudspeaker coaxial speaker 6.5"

  • 1
  • 2
  • 3

Place of Origin : Guangdong, China

Brand Name : HYYX

Model Number : HYW-650-010

Supply Ability : 5000 Piece/Pieces per Week

Packaging Details : 1. Inside + outside strong double boxes 2. Customized

MOQ : 2 Piece/Pieces

Price : $15.00 - $55.00 / Piece

Product Name : 6.5 inch coaxial speaker

Frequency Response : 80Hz-18KHz

Sensitivity : 94dB

Nominal Impedance : LF:8 Ohms HF: 8 Ohms

Size : 6.5/8/10/12 Inch Optional

Rated Power : LF:150W/ HF:50W

Cone material : Paper

Magnet material : Ferrite

Frame material : Die-casting aluminium

Net weight : 2.8 KG

Port : Huangpu, Nansha

Contact Now

Product Description
6.5 inch Professional speaker loudspeaker coaxial speaker 6.5"
6.5 inch Professional speaker loudspeaker coaxial speaker 6.5"


Features :

- 300W continuous program power capacity
- 94dB sensitivity
- 80hz-18khz Frequency response
- Single magnet design
- Titanium / Polyester diaphragm for HF driver

- 25mm(1") HF throat size
- 2" LF VC + 1.7" HF VC
- Replacement diaphragm for HF , Titanium or Polyester
Speccification :
Specification
Nominal diameter
170/6.5
mm/inch
Nominal impedance
8
ohm
Min impedance LF
5.2
ohm
Min impedance HF
6
ohm
Frequency response
80-18k
Hz
Dispersion angle
70
°
Magnet size
145x25
mm
Magnet material
Ferrite
Specification LF
Sensitivity (1w/1m)
94
dB
Nominal power handling
150
Watts
Continuous power handling
300
Watts
Voice coil diameter
50/2 "
mm/ inch
Winding material
Copper
Cone material
Paper
Surround material
Cloth
Specification HF
Throat size
25/1
mm/inch
Sensitivity (1w/1m)
106
dB
Nominal power handling
50
Watts
Continuous power handling
100
Watts
Voice coil diameter
44/1.7
mm/inch
Diaphragm
Titanium / Polyester
T/S Parameter
Fs
82.5
Hz
Re
5.2
Ω
Qes
0.78
Qts
0.74
Qms
15.24
Vas
8.8
L
Rms
0.4
kg/s
Cms
0.31
mm/N
Mms
12.1
gr
BI
6.5
N/A
Rp
70.0
Ω
Lp
13.3
mH
Cp
508.7
uF
Le
0.5
mH
Xmax
6.5
mm
Mounting information
Overall diameter (Diagonal)
185/7.28
mm/inch
Bolt Circle diameter
170/6.7
mm/inch
Baffle Cutout diameter
147/5.78
mm/inch
Depth
114/4.48
mm/inch
Flange thickness
9/0.35
mm/inch
Shipping information
Net weight
2.8
KG
Shipping weight
3.3
KG
Shipping box
190x190x145
mm
